Verilog Modelling Styles
Can be done in three different abstractions:
- Gate level [less abstract]
- Dataflow level [more abstract]
- Behavioral level [even more abstract]
Combinational Logic vs Sequential Logic
Combinational Logic
Output is a function of the input

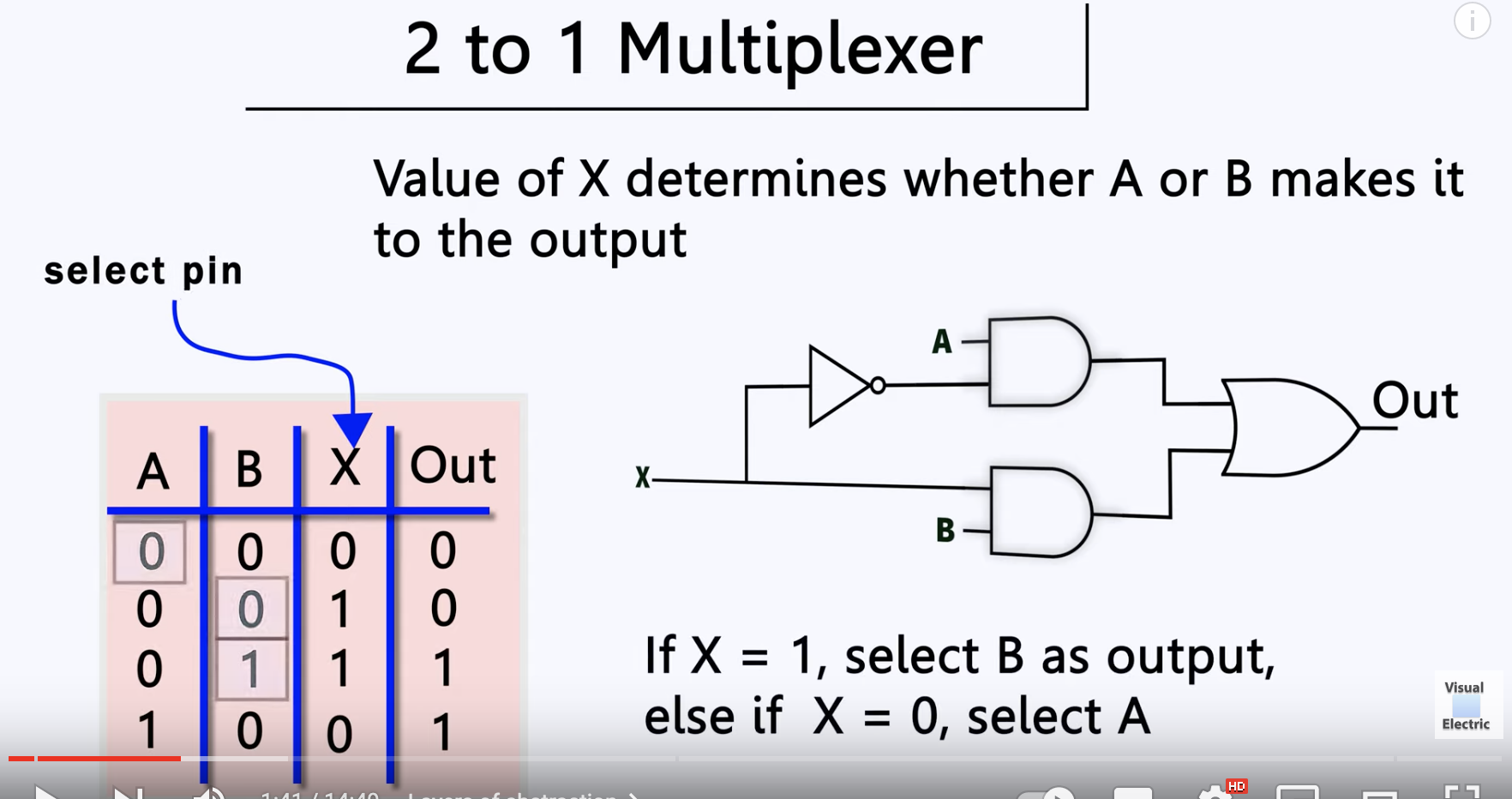

2 to 1 multiplexer
-

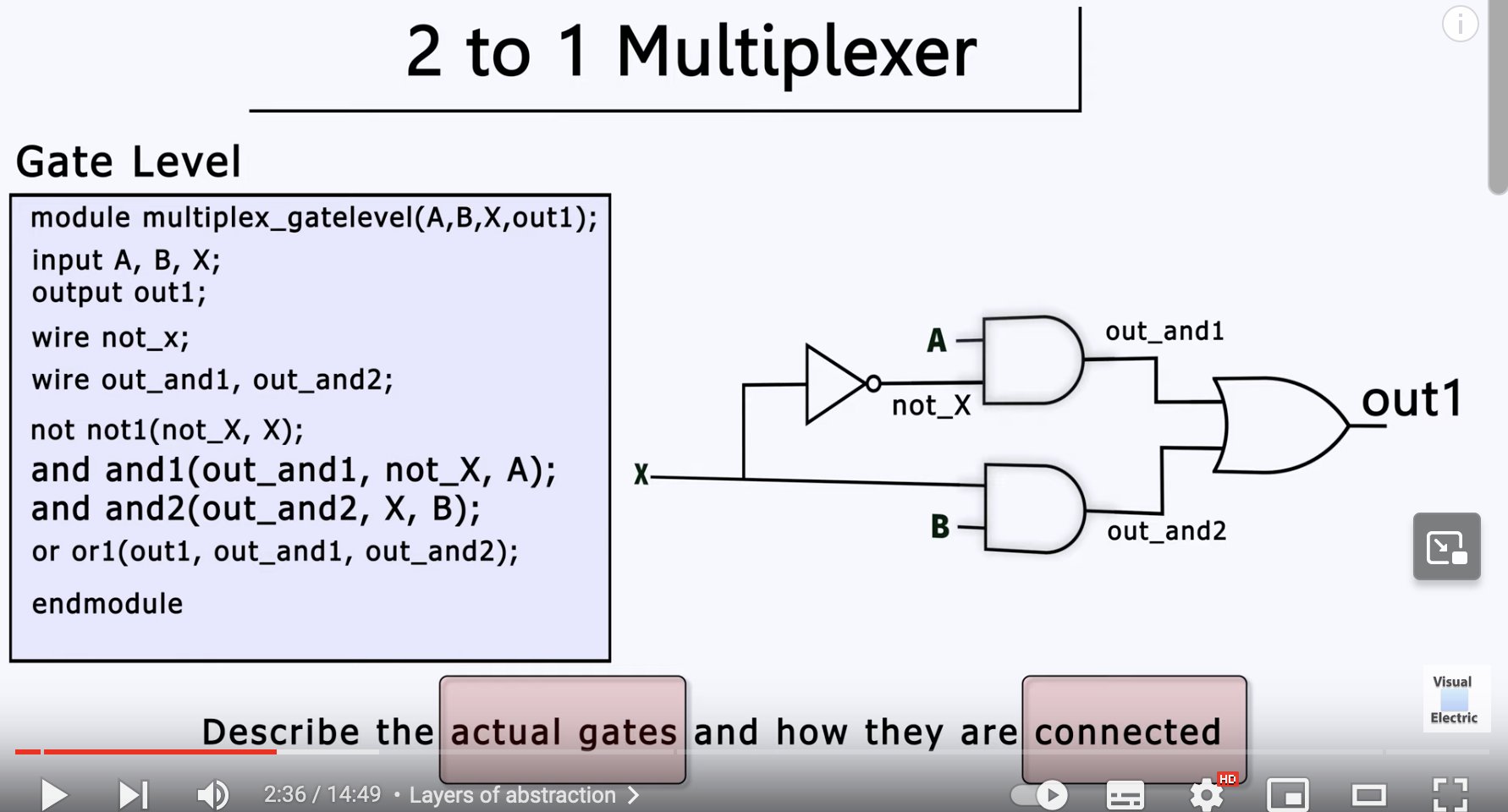

Gate level Describes the actual gate and how they are connected
-

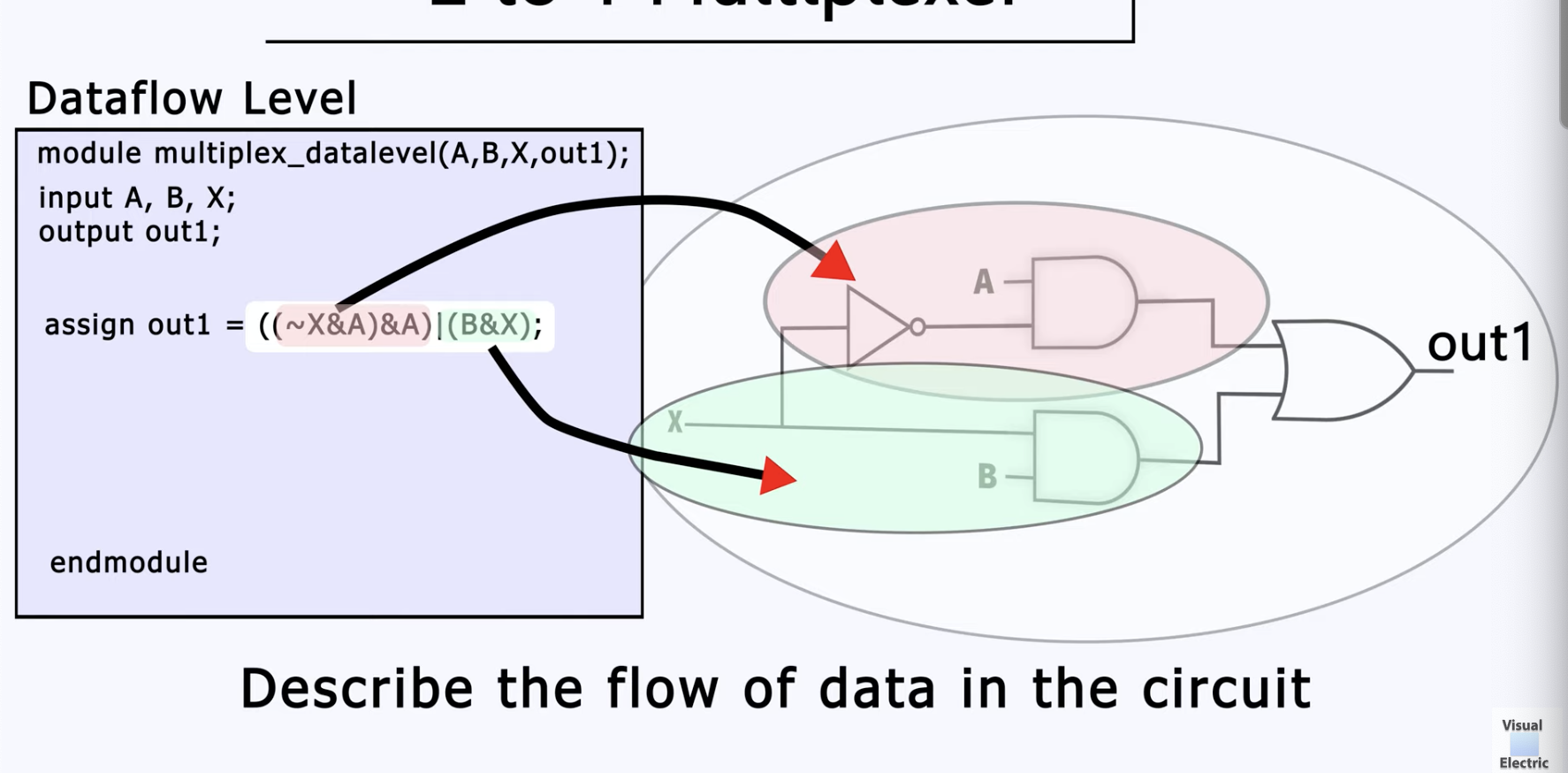

Dataflow level Describes the flow of data in the circuit
-

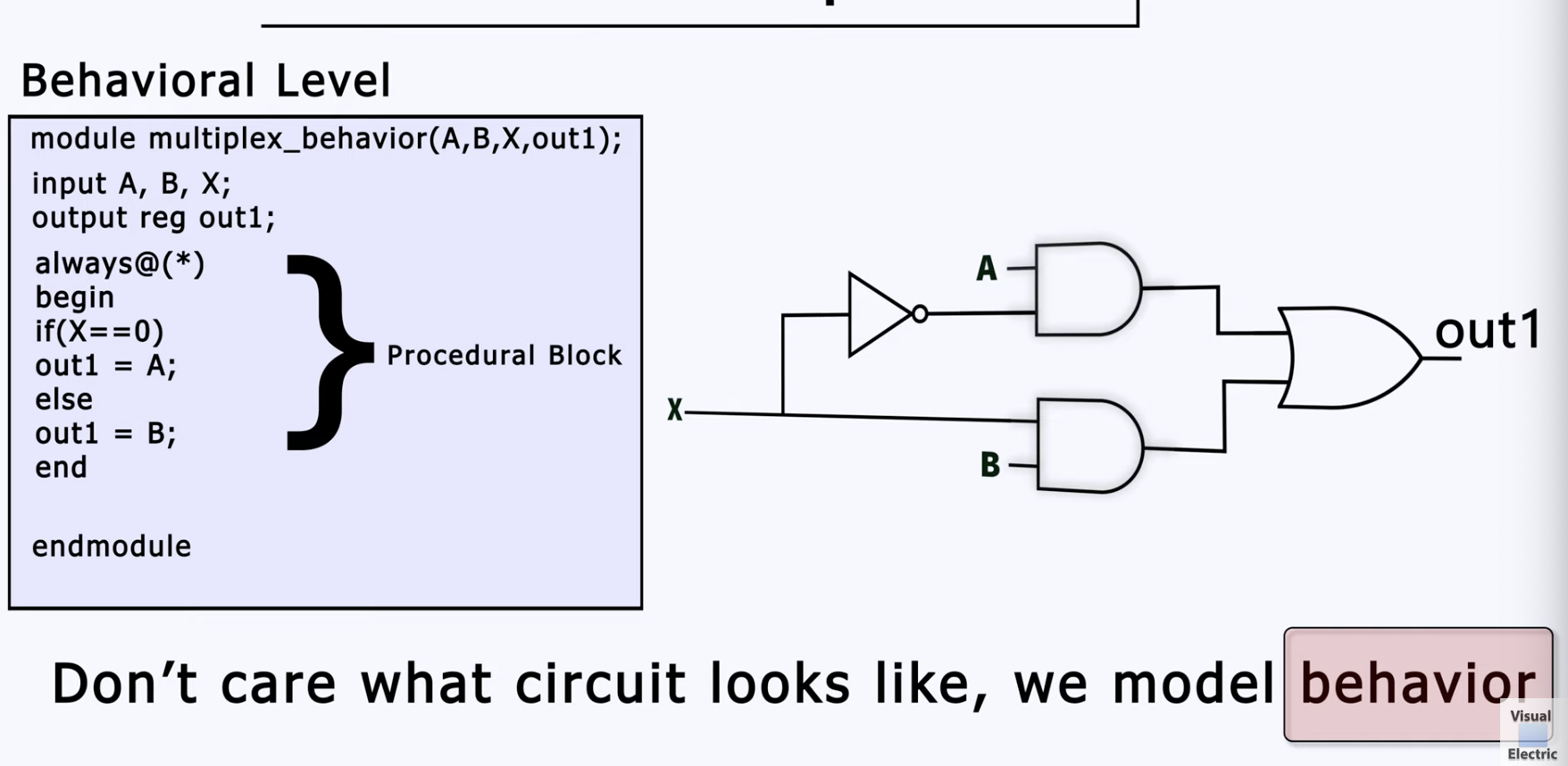

Behavioral level describes the behavior, rather than what the circuit is
Sequential Logic
Requires:
- memory
- state
